Z11型胀紧联结套

  • 产品简介: Z11型胀紧套定位精度高,毂孔简单,应用广泛.注:Z11型胀紧联结套螺钉的机械性能等级为12.9级.
  • 咨询热线:0317-8309525
  • 产品详情

    性能特点
    Z11型胀紧套定位精度高,毂孔简单,应用广泛。

    标记示例
    Z11型胀紧联结套

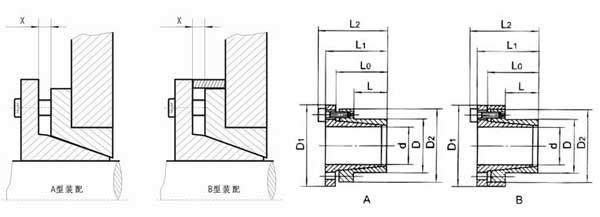

    Z11型胀紧联结套的基本尺寸和参数
    注:Z11型胀紧联结套螺钉的机械性能等级为12.9级

    基本尺寸额定负荷内六 角螺钉螺钉的拧紧力矩MA N·m胀套与轴结合面上的压力 Pf
    N/m㎡
    胀套与轮毂结合面上的压力Pˊf
    N/m㎡
    重 量
    ( ㎏ )
    dDd0L0ll1l2D1D2转矩Mt N·m轴向力Ft kN
    mmd1n
    装配形式ABAB

    ABAB
    142328.52314263038331086815.59.7M444.9210132128800.15
    15243229163642454028517935.522.4M64173071932191380.26
    16243229163642454028517935.522.4M64173282062191380.25
    18263434184147474232020035.522.4M64172901842021270.27
    19273534184147494333521235.522.4M64172761741951220.30
    20283634184147504435022435.522.4M64172621651871180.30
    22324041254854544835323135.522.4M6417155101106690.38
    24344241254854565063640053.433.6M66172371491671050.40
    25344241254854565066542053.433.6M66172281431671050.39
    28394741254854615574547053.433.6M6617204128146920.47
    30414941254854625779550053.433.6M6617189119139870.48
    324351412548546559113671571.344.8M68172371491771110.52
    354754453252586962116073571.344.8M681715299114740.63
    385058453252587266122379771.344.8M681714092106700.67
    405361453252587569128784071.344.8M681713387100660.74
    425563453252587871135288171.344.8M681712782102660.78
    455969.56445728086802677174511977.6M8841155102119781.23
    486271.56445728087812855186011977.6M884114595113741.24
    506575.56445728092862975194011977.6M884114092108701.40
    557181.57455829098923680240013387.2M89411177791601.70
    607787.574558290104984015262013387.2M89411077084551.90
    658494.5745582901111054350284013387.2M89411006577552.20
    7090101.587659710711911374404850212139M109831238196633.05
    759510787659710712611979705200212139M109831147591593.32
    80100112.5876597107131125113357390283184M10128314494115753.50
    85106118.5876597107137131120407850283184M10128313588108713.81
    90112124.5876597107144137127508320283184M10128312883102674.20
