当前位置:首页 » 产品目录 » 工业胀紧套 »

Z10型胀紧联结套

  • 产品简介: Z10型胀紧套适用于轴和轴套之间的无键联结装置可从外部对轴套施加夹紧力,使轴与轴套之间形成机械压缩配合,而传递扭矩,胀套本身不传递任何力矩及负载,容易安装,拆卸.
  • 咨询热线:0317-8309520
  • 产品详情

    性能特点
    Z10型胀紧套适用于轴和轴套之间的无键联结装置可从外部对轴套施加夹紧力,使轴与轴套之间形成机械压缩配合,而传递扭矩,胀套本身不传递任何力矩及负载,容易安装、拆卸。

    标记示例
    Z10胀紧联结套

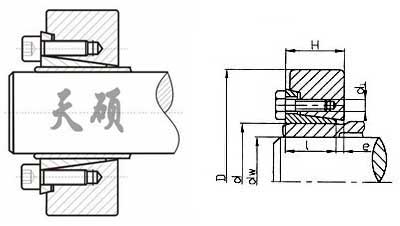

    Z10型胀紧联结套的基本尺寸和参数
    注:Z10型胀紧联结套螺钉的机械性能等级为12.9级

    基本尺寸内六角螺钉额定负荷螺钉拧紧力矩MA
    N.m
    重量
    kg
    e
    mm
    dDdwlHd1轴向力F1
    kN
    扭矩M1
    kN.m
    mm
    123210911M5×880.03850.061
    14371290.0520.08
    1641141215M5×12130.0900.121.5
    184415100.080
    16140.112
    204717160.1400.15
    18200.184
    2450191418170.1600.22
    20200.200
    22250.280
    3060241620230.280.3
    25250.32
    26270.36
    3672281822M6×16370.55120.42
    30430.68
    31460.74
    4480342024410.700.6
    35440.77
    36470.85
    5090382226551.100.82.5
    40641.32
    42721.54
    55100422329541.131.13
    45661.50
    48771.85
    6211048691.601.3
    50771.92
    52842.17
    6811550731.801.4
    55902.44
    601033.10
    75138552531M8×25972.70291.74
    601173.52
    651334.30
    80145601083.251.9
    651213.97
    701334.70
    90
    (85)
    1556530381454.703.3
    701705.98
    751907.20
    100
    (95)
    170703443M8×251705.91294.74
    752007.42
    802208.90
    110
    (105)
    185803940M10×302269.05585.95
    8525510.38
    9028012.6
    125
    (120)
    (130)
    215904253M10×3028012.85588.35.5
    9531514.98
    10034017.00
    140
    (135)
    2301004658M12×3537018.50100106
    10540021.10
    11043123.70
    155
    (160)
    263110506244024.015
    11547327.0
    12050830.2
    165
    (170)
    2901205668M16×4052534.5240227
    12562038.6
    13066042.8
    175
    (180)
    30013065042.08
    13568046.2
    14072050.6
    185
    (190)
    330140718587061.037
    14591066.2
    15096071.7
    200
    (195)
    35015010207741
    155107082.7
    160110088.1
    220
    (210)
    37016088103M16×50121097240549
    1651270105
    1701335113.5
    240
    (230)
    40517092107M20×6013901184706710
    1801515136
    1901630154.8
    260
    (250)
    430190103119170016282
    2001820182
    2101930202.8
    280
    (270)
    4602101141322030213102
    2202150240
    2302330269,
    300
    (290)
    4852301221402280262118
    2402450294
    2452530310
    320
    (310)
    5202402510301131
    2502682335
    2602850370
    340
    (330)
    570250134155M20×70312038947018612
    2603300426
    2703430463
    360
    (350)
    590280140159380053220412
    2903970575
    3003990599
    390
    (380)
    650310144163M24×80426064082025014
    3204400690
    3304640742
    420
    (400)
    670340164184477078782030014
    3505000846
    3405200910
    440
    (430)
    740350172192550093582040015
    35057201000
    36060001060
    460
    (450)
    77036060501090420
    37062001150
    38065001235
    480
    (470)
    800380188213M24×9065601280500
    39067501350
    40069401420
    500
    (490)
    850400M27×90750014801210570
    41077201600
    42079201720
    530
    (520)
    910430231238M27×1008470188074017
    44090002000
    45092502120
    560
    (550)
    94045089502020770
    46093502150
    47097002280
    590
    (580)
    98047022826010600250090018
    480110002650
    490114502800
    620
    (610)
    1020500254286M30×11011000274016401080
    510113002900
    520119003100
